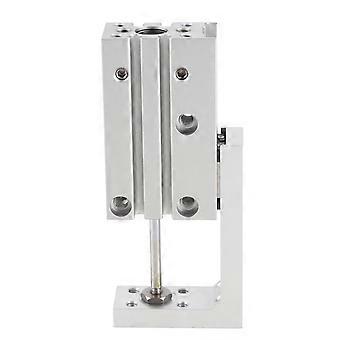

Features 1、Equipped with linear guide bearings to improve non‑rotating accuracy of plug rod. 2、Standard type has a built‑in magnetic ring and a travel induction magnetic switch can be installed. 3、Air source can be connected from three sides, and air source can be connected from three sides. 4、Optional adjustable stroke device can meet different needs. 5、Can be used in automotive, food processing, material handling and robotic applications. Specification Condition: 100% Brand New Item Type: Pneumatic Slide Table Cylinder Bore Diameter (mm): Approx. 10mm/0.4in Stroke: 10, 20, 30, 40, 50, 60 Guide Bearing Width: Approx. 7mm/0.3in Use Fluid: Air Action Mode: Double Acting Minimum Working Pressure: 0.06MPa Maximum Working Pressure: 0.7MPa Environment and Fluid Temperature: -10~+70℃ (But Not Frozen) Piston Speeds: 50~500mm/S Allowable Kinesthetic Energy J: 0.025 Give Oil: Not Needed Buffer: Rubber Buffer at Both Ends Stroke Length Tolerance (mm): Approx. +1.0mm Port Diameter: M5×0.8 Material: Steel Package List 1 x Pneumatic Slide Table Cylinder
