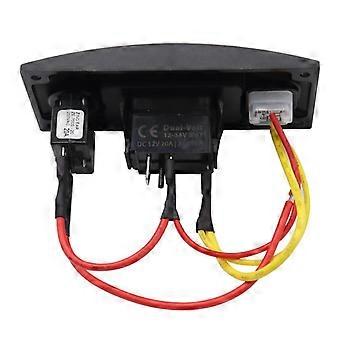

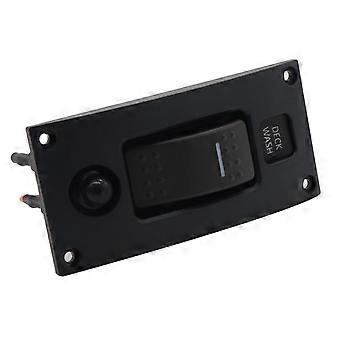

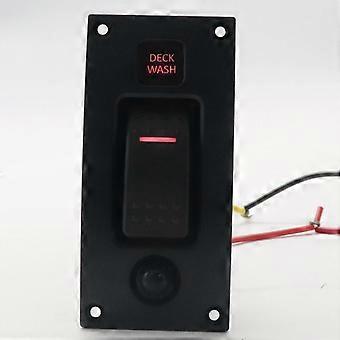

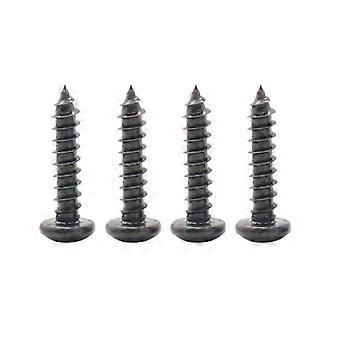

Description: Modern design single gang switch panel C-7 Sealed IP66 Switch with dual (12-24V) voltage rating Backlight label module allowing easy recognition in darkness Fit perfectly with series regular panels Controlling such as deck washing machine or other devices Specification: Material: Curved shaped plastic Circuit Protection: 20 A Push Reset Circuit Breakers Ratings: DC 12V 20A /24V 10A Panel Depth: 75 mm Dimensions: 114 x 54 mm Mounting Dimensions: 103 x 43 mm Notes: IP66 Package Includes: 1 piece Deck Wash Rocker Switch Panel Note: Installation Instructions 1.Disconnect all power (AC & DC). 2.Cut opening for mounting location using the template provided. 3.Connect the positive wire () to the DC power source (the batteries) and the LED negative feed wire (yellow) to a DC negative bus bar. 4.Connect the devices positive to the load terminal of the switch. Connect the negative wires of the devices to a negative bus bar. 5.Mount the switch panel with the included self-tapping screws. 6 Reconnect all the AC & DC powers. Turn on and off all branch circuits to check if the panel works normally.
