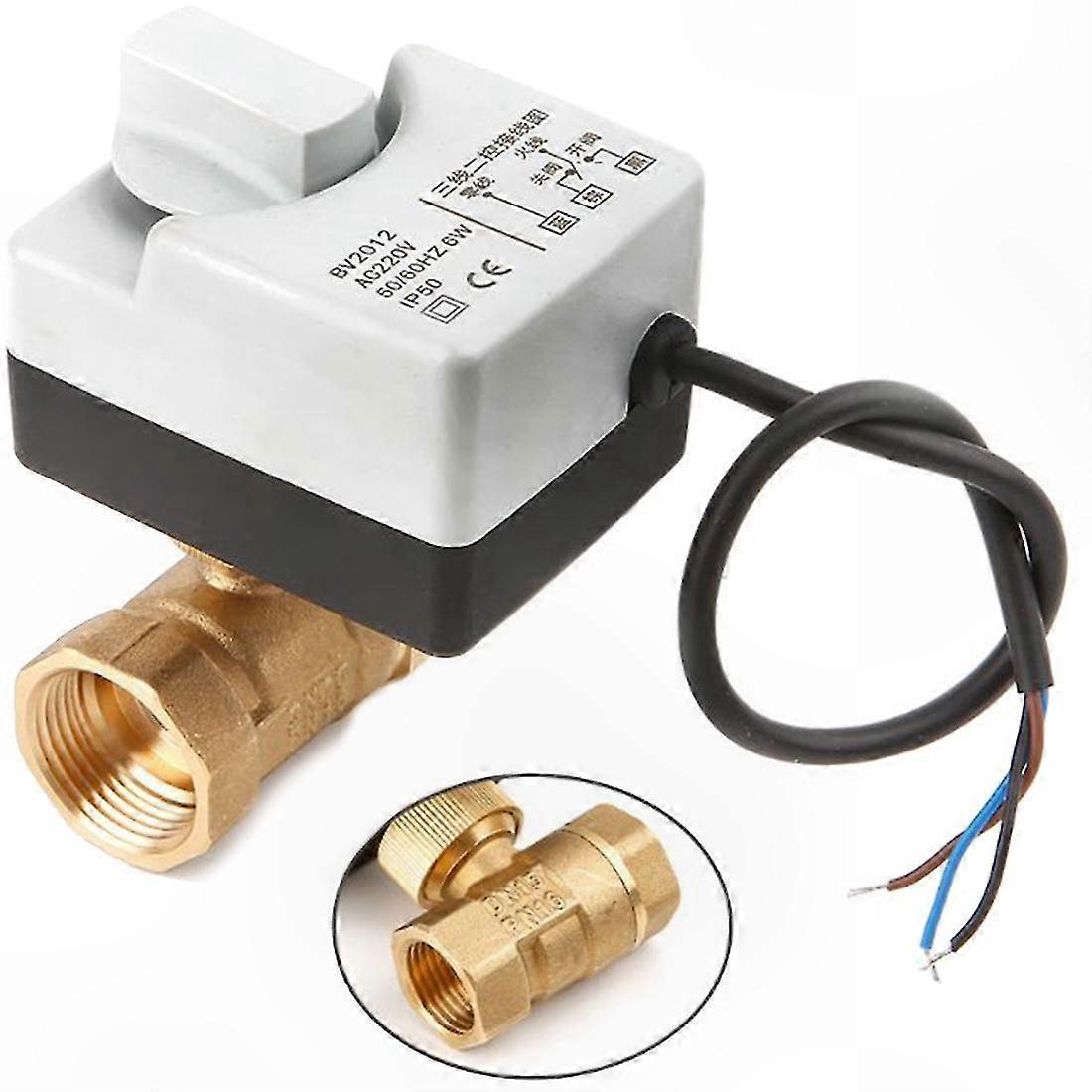

Pressure: Medium Pressure Standard or Nonstandard: Standard Source: AC Structure: As shown Type: Electric Material: Plastic + Metal Dimension: DN15 Maximum Working Pressure: 1.6 MPa / 232 psi Medium: Water, Oil Voltage: AC220V 50/60 Hz Available Power: Max is 6W Operation: Motor and hand (with manual switch function) Cable Length: 0.5 Meters Lifetime: 100000 cycles Seal Material: EPDM & PTFE Environment Temperature: -15~50°C Fluid Temperature: -5~100°C Class: IP50 Application: This motorized ball valve is applicable to air conditioning fan coil systems and heating systems for on-off control, consisting of a ball valve and an actuator. The actuator uses synchronous motor drive with built-in limit switches, allowing the valve to be fully open or fully closed, ensuring stable operation. Working Principle: This valve is used for heating systems and air conditioning fan coil systems with on-off control via the valve and actuator components. The actuator drives the ball valve through 90 degrees of movement. The synchronous motor-driven actuator with built-in limit switches enables the valve to achieve full open or full closed positions with stable action. Package Includes: 1 x Electric Actuator Ball Valve Note: Only the above package content is included; other products are not included. Note: Light and display settings may cause slight color differences between the image and the actual item. Measurement error allowed is +/- 1-3 cm.
