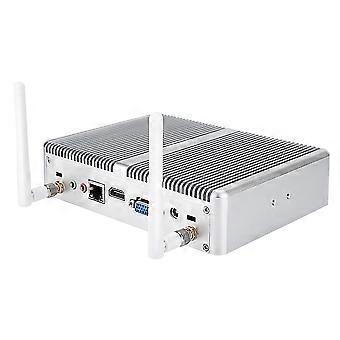

H2-4405U NO Storage NO RAM MINI PC Computer Host for Intel Dual Core
Features:
1. Fanless design, aluminum alloy casing, fast heat dissipation.
2. Mini size, low power consumption, durable e.
3. Support dual-band 4K output, 4K HD decoding, mini DP 4K 60hZ, HDMI 4K 30HZ, play HD video.
4. Support 2.4G/5G dual-band wireless network, support self-replacement antenna.
5. Support Gigabit RJ45 wired network.
Specification:
<
Processor
For Intel Pentium 4405U
Storage (not included)
Solid state drive: 8G/16G/32G/64G/128G/256G/512G/1TB optional
Mechanical hard disk: 160G/320G/500G/1TB/2TB optional
Can install a solid state drive + a mechanical hard disk at the same time
Motherboard
For Intel Broadwell-ULT
Memory (not included)
Single channel DDR3L 2GB/4GB/8G/
CPU
For Intel Pentium 4405U
Main frequency
2.1GHz
Number of cores
Dual core / 4 threads
Process
22 nm
I/O Port
power supply on/off
4 x USB 3.0
2 x USB 2.0
1 x DC IN 12V / 3-5A
1 x HDMI
1 x VGA
1 x LAN (RJ-45 port 10/100/1000 Mbps adaptive)
1 x MIC 3.5mm
1 x SPK 3.5mm
2 x WIFI antenna ports
Graphics Card
For Intel HD Graphics 510 Display Core
Sound Card
For Intel Lynx Point-LP High Definition Audio
Network
Network Card
Raychem RTL8168E PCI-E Gigabit LAN
Interface
10/100/1000Mbps adaptive RJ45 interface
Wireless
802.11.b/g/n
Display Interface
1* HDMI+ 1* VGA, support for syncing different display
USB Interface
4 * USB3.0 interface, 2 * USB 2.0 interface
Internet
10/100/1000Mbps RJ45 network port
Sound
Standard 3.5 sound input and output interface
Power supply and working environment
Power Input
DC100-240V AC/50-60Hz
Output
DC 12V / 3-5A
Operating Temperature
-20-80℃
Storage Temperature
0℃-80℃
Relative Humidity
10%~90% (non-condensing)
Package List:
1 * Host
1 * Power Adapter
1 * Power Cable
2 * WIFI Antenna
1 * CD
1 * Screw Package
1 * Bracket
1 * Instruction Manual
2 * mSATA Line
1 * Mouse Pad
Important Note:
Requires customers to purchase and install accessories: hard drive and memory. The hard disk supports mechanical hard disks and solid state hard disks. Memory support DDR3L.
-
