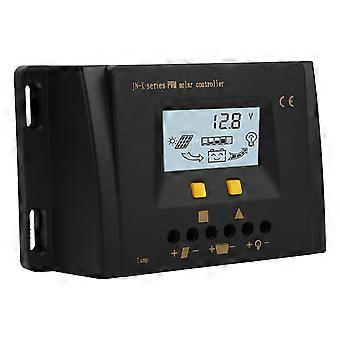

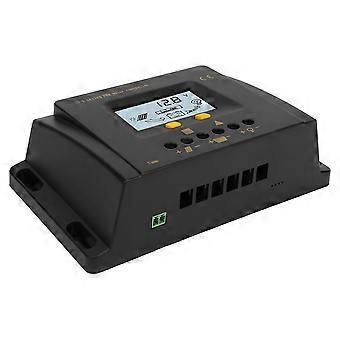

Feature: 1. Use CPU processor superior speed performance. 2. The high precision A/D sampling to ensure the accuracy of sampling. 3. The efficient tandem PWM charging mode, extend battery life, improves the system performance. 4. The controller with over temperature, over discharge, overload, short circuit protection function. 5. Radiator heat dissipation is fanless designed and fanless design. Dust is difficult to enter, sealed well, with sufficient material, no suction, low power consumption, effectively avoiding noise. 6. The photovoltaic array and reverse battery protection function. 7. Standard RJ45 interface equipment that can be used for connecting the liquid crystal display unit or PC monitor software and communication peripherals, it is convenient for the user view the controller’s running data, modify the controller control parameters. 8. Use of RS-232 communication, the communication speed and communication protocol compatibility are very well. Specification: .Item Type: Solar Charge Controller Optional Model12V/24V 10A, 12V/24V 20A, 12V/24V 30ARated voltage12V/24V auto，48VBattery maximum voltage15V/30V/60VSolar panel maximum voltage22V/44V/88VRated charging current10A20A30A40A50A60ACharging line voltage drop≤0.7VDischarging line voltage drop≤0.2VStatic loss0.2WcommunicationRS232/RJ45 InterfaceUSB output0.5A/5VOver-temperature protectionBelow 75℃ full current，75℃-90℃ half current， above 90℃ off chargeWorking environment parametersLCD display temperature-20℃-75℃Working environment temperature-20℃-50℃Storage temperature-30℃-70℃Protection levelIP30Mechanical parametersWire terminal（㎜²)2.5610101616Size LxWxH（mm)165 x 100 x 50mm / 6.5 x 3.9 x 2.0in207.5 x 129 x 69.5mm / 8.2 x 5.1 x 2.7inNet weight（kg）0.350.380.401.301.351.40Battery voltage parameters（Battery voltage parameters are based on 25℃/12V system，24V system X2，48V systemX4）Battery parametersBattery typeColloid lead acid batterySealed lead acid batteryLithium iron phosphate batteryManganateLithium batteryUserdefinitionOver-charge disconnect voltage (V)15.515.513.214.413-16Overvoltage recovery voltage (V)14.815.012.614.013-16Equilibrium charge voltage (V)14.614.612.413.813-15Enhance charge voltage(V)14.214.412.213.613-15Floating charge voltage(V)13.613.812.013.212-14Under-voltage recovery voltage(V)12.612.811.512.611-13Under-voltage shut down voltage(V)10.810.89.610.59-11Equilibrium charge duration(min)——12012012060-180Enhance charge duration(min)12012012012060-180Light control voltage parametersLight control turn on voltageMaximum10VMin6VDefault8VLight control turn off voltageMaximum 8VMin2VDefault4VBattery temperature compensation parameters Temperature compensation parametersMaximum 0mV∕℃∕2VMin-8mV∕℃∕2VDefault-4mV ∕ ℃ ∕2V （based on 25℃）Equilibrium, enhance, floating, enhance recovery voltage, low voltage disconnect recovery voltage, under voltage alarm recovery voltage, under voltage alarm voltage, low voltage disconnect voltage‘s temperature compensation parameters are the same Package List: 1 x Solar Charge Controller 1 x English Manual Note: Please note that the new type and old type of this product will be sent randomly, and make sure you will not mind before ordering.
