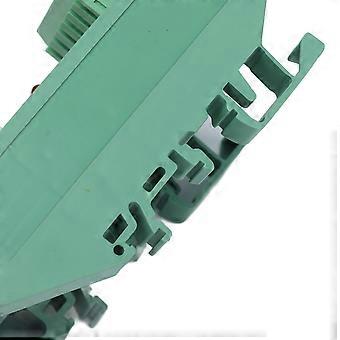

Motor Synchronous Pulse Distributor 1 Group Signal Inputs 4 Group Differential Outputs Item Type: Motor synchronous pulse distributor Product Material: PCB Purpose: Used in applications where a set of pulse signals drive multiple loads at the same time, often used in servo system programming or stepper motor control Input signal High speed pulse signal Number of channels 2 Channels: A+ A-;B+ B- Frequency 0-2MHZ Level Differential (3.3-24V), collector 5-24V, TTL 5V Current Required input drive current 7mA Output signal Differential signal Number of channels 4 Channels:A1+ A1-;A+ A2-;A3+ A3-;A4+ A4-;B1+ B1-;B2+ B2-;B3+ B3-;B4+ B4-; Frequency 0-2MHZ Level Standard RS-422 differential High level 40 Current Maximum 25mA Power supply 24V DC (normal range 18-26V) Environmental characteristics Operating temperature -25~+70℃ Relative humidity ≤90%(40℃) Storage temperature -40~+60℃
