Features:

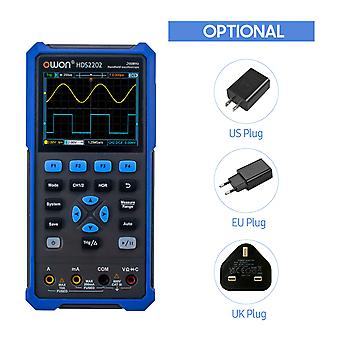

[2 in 1 Oscilloscope and Multimeter] Oscilloscope -- dual channels input, 200MHz bandwidth, 1GSa/s sampling rate. Multimeter -- true RMS, 20000 counts, auto range, voltage/ current/ resistance/ diode/ capacitance/ continuity testing.
[Digital LCD Display] 3.5-inch high-resolution, high-contrast color LCD display, clear at a glance, easy to read even in dark environment. Supports self-calibration function. SCPI supported, facilitates secondary development.
[Rechargeable, PC Software Supported] Built in with 4400mAh lithium battery, provides about 4 hours long working time. Low comprehensive power consumption, power-saving. Type-C USB interface, comes with USB cable and power adapter for easy and quick charging, supports PC software connection.
[Reliable Quality, Small Size] ABS plastic shell is sturdy and durable, compact and lightweight, comfortable to hold, easy to operate, portable to carry. Foldable bracket is convenient to use and space-saving when not in use.
[Wide Range of Use] One machine in hand, worry-free testing in multiple scenes. Suitable for outdoor maintenance, rapid on-site measurement, automobile maintenance, power detection, etc..
Note: Color and size may be slightly different due to manual measurement and different light conditions. Thanks for understanding.
Specifications:
Plug: UK
Color: Black & Blue
Material: ABS
Display: 3.5-inch LCD
Bandwidth: 200MHz
Oscilloscope Channel: 2
Sample Rate: 1GSa/s
Multimeter: Max. 20000 Counts
Testing Modes: Voltage (AC 750V, DC 1000V), Current (AC 10A, DC 10A), Resistance, Capacitance, Diode (0-2V), Continuity
Built-in Battery: 2 * 3.3V 2200mAh Lithium Battery
Interface: Type-C USB Interface
Item Size: 198 * 96 * 38mm / 7.80 * 3.78 * 1.50in
Item Weight: 508g / 1.12lbs
Package Size: 24 * 16 * 9cm / 9.45 * 6.30 * 3.54in
Package Weight: 1058g / 2.33lbs
Package List:
1 * Oscilloscope
1 * Oscilloscope Probe
1 Bag of Probe Adjustment Accessories
2 * Measuring Pen
1 * BNC to Alligator Clip
1 * Adapter
1 * Type-C USB Cable
1 * User Manual (English)
1 * Carry Bag
-
