Description
Features
Easy To Use: Using the USB interface, the installation and use method is simple, the operation is convenient, and it can meet a variety of use needs.
Sturdy Material: The mini logic analyzer is made of high-quality ABS material, which has good durability and stability, not easy to wear, and has a long service life.
Small and Portable: The logic analyzer equipment set is small and lightweight, making it easy to carry and use. Widely used in automotive electronics, communications, power supply, computer and other industries.
Professional Manufacturing: This logic analyzer is manufactured with professional technology, with stable performance, and can provide convenient, intuitive and powerful analysis functions.
Commitment: Our logic analyzer equipment is quality tested before shipping. If you have any questions after receiving the goods, please contact us and we will solve the problem for you.
Specification:
Condition: Brand New

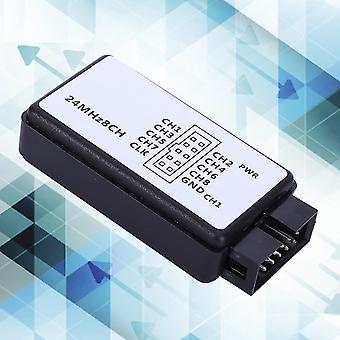

Item Type: Logic Analyzer
Material: ABS
Weight: Approx. 43g / 1.5oz
Product Number: LA1002
Measurement Input Parameters: Number of Channels8
Maximum Sampling Rate: 24M at 8CH
Measurement Bandwidth: 5MHz
Minimum Captureable Pulse Width: 80ns
Maximum Sampling Depth: 10G/Channel
Input Voltage Range: 0V - +5V
Equivalent Input Impedance: 12kΩ, 12PF
Threshold Voltage: ≤S1.0V Low Level, ≥22.0V High Level
Power Supply Interface: USB2.0/3.0
Stand-By Current: 50mA
Maximum Working Current: 80mA
Supporting Agreement: Support for UART/RS-232/485, for I2C, for SPI, for CAN, for DMX512, for HDMI CEC,
for 12S/PCM, for JTAG, for LIN, for Manchester, for Midi, for Modbus, 1-Wire
for UNI/O, for SDIO, for SMBuS, for SWD, USB1.1, for PS/2 mouse and keyboard,
for NEC infrared, parallel port
Support Operating System: Support for Windows XP/7/8/10 (32bit/64bit), for Vista, for OS, for Linux and other operating system
Product SizeApprox. 56x27x14mm / 2.2x1.1x0.6in
Package List:
1 x Logic Analyzer1 x USB Cable1 x Jumper Wire
Note:
1.Please allow 0‑1 inch error due to manual measurement. Thanks for your understanding.
2.Monitors are not calibrated same, item color displayed in photos may be showing slightly different from the real object. Please take the real one as standard.
3. Please note that the new type and old type of this product will be sent randomly, and make sure you will not mind before ordering.
Package List
1 x Logic Analyzer
1 x USB Cable
1 x Jumper Wire
-
Fruugo ID:
405285638-859752838
-
EAN:
9789622092839
